Standard Series Web Strap Ratchet Winch Hoists.
For over 40 years these web strap pullers have been the choice of the electric utility industry. These hoists meet
the ASME B30.21 spec. and go further with our stress link overload warning system and RFID tracking.
The Standard Series feature models from 2000 to 4000 lb capacity.
Interlocking pawl system
Double flanged drum - keeps web strap from coming in contact with ratchet teeth
Reversible handle with 2 spare stress links
Oiled for life bearings
1 ¼” OD fiberglass handle for extra stiffness
Synthetic web strap
USA forged steel hooks

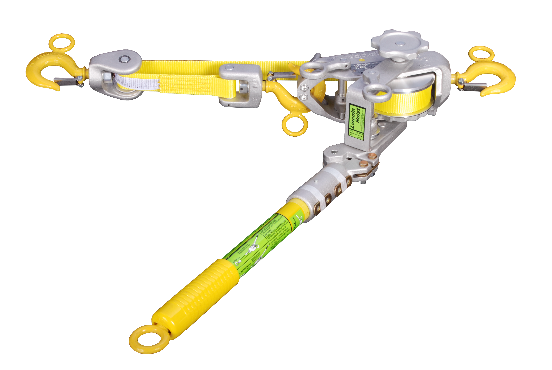

Model 2W10SB shown
|
Standard Series Web Strap Hoist Specifications |
||||||||||
|
Model # |
Handle Length Inches |
Single Line |
Double Line |
Hoist Weight Lbs. |
||||||
|
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
|||||
|
Lbs. |
Tons |
Lbs. |
Tons |
|||||||
|
2W10 |
30 |
1000 |
1/2 |
9 |
18 |
2000 |
1 |
4-1/2 |
23 |
10-1/4 |
|
2W10S |
20 |
1000 |
1/2 |
9 |
18 |
2000 |
1 |
4-1/2 |
23 |
10-1/4 |
|
3W08 |
30 |
1500 |
3/4 |
7 |
20 |
3000 |
1-1/2 |
3-1/2 |
24 |
10-1/4 |
|
3W08S |
20 |
1500 |
3/4 |
7 |
20 |
3000 |
1-1/2 |
3-1/2 |
24 |
10-1/4 |
|
3W15 |
30 |
1500 |
3/4 |
14 |
22 |
3000 |
1-1/2 |
6-1/4 |
30 |
14 |
|
4W12 |
36 |
2000 |
1 |
10 |
22 |
4000 |
2 |
5 |
30 |
14-3/4 |
