ASME Series Cable Ratchet Winch Hoists.
This line of hoists is designed to meet or exceed the strict ASME B30.21 standard for lever hoists.
The ASME Series feature models from 1000 to 3400 lb. capacity.
|
ASME Series Hoist Specifications |
|||||||||||
|
Model # |
Cable Dia. |
Handle Length Inches |
Single Line |
Double Line |
Hoist Weight Lbs. |
||||||
|
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
||||||
|
Lbs. |
Tons |
Lbs. |
Tons |
||||||||
|
10C15 |
3/16 |
17-1/2 |
1000 |
1/2 |
15 |
18 |
– |
– |
– |
– |
7 |
|
15C25 |
5/32 |
15 |
750 |
3/8 |
25 |
20 |
1500 |
3/4 |
12-1/2 |
23 |
8-1/2 |
|
20C15 |
3/16 |
17-1/2 |
1000 |
1/2 |
15 |
20 |
2000 |
1 |
7-1/2 |
23 |
8-3/4 |
|
20C20 |
3/16 |
17-1/2 |
1000 |
1/2 |
20 |
20 |
2000 |
1 |
10 |
23 |
9-1/4 |
|
20C38 |
3/16 |
22 |
1000 |
1/2 |
38 |
22 |
2000 |
1 |
19 |
29 |
13-3/4 |
|
30C11 |
7/32 |
20 |
1500 |
3/4 |
10 |
20 |
3000 |
1-1/2 |
5 |
23 |
10-1/2 |
|
30C30 |
7/32 |
25 |
1500 |
3/4 |
30 |
22 |
3000 |
1-1/2 |
15 |
29 |
15 |
|
34C20 |
1/4 |
30 |
1700 |
7/8 |
20 |
22 |
3400 |
1-3/4 |
10 |
29 |
15-1/2 |

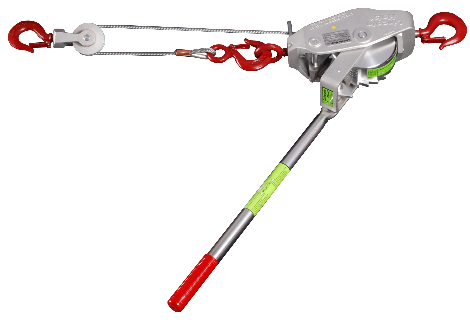

Model 30C30 shown
USA forged steel hooks
Highly flexible aircraft cable
Hydraulically crimped copper sleeve for more uniform hold
Reversible handle bends on overload
Interlocking pawl system
Cable shield protects cable and promotes even winding
All cable stores on drum
Oiled for life bearings
