Operating levers
Convertible Features
The Model 30 convertible puller comes standard with a lynch pin pulley block. It can be used as a double line pulley block or you can attach it to the end of the web strap for single pull. These models also come with operating levers on the pawl shafts.
|
Convertible Series Web Strap Hoist Specifications |
||||||||||
|
Model # |
Handle Length Inches |
Single Line |
Double Line |
Hoist Weight Lbs. |
||||||
|
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
|||||
|
Lbs. |
Tons |
Lbs. |
Tons |
|||||||
|
30W08 |
30 |
1500 |
3/4 |
7 |
23 |
3000 |
1-1/2 |
3-1/2 |
23 |
10 |
|
30W08S |
20 |
1500 |
3/4 |
7 |
23 |
3000 |
1-1/2 |
3-1/2 |
23 |
10 |
Convertible Web Strap Ratchet Winch Hoists.
Our convertible web pullers are easily changed from single to double line without any extra parts.
These hoists were designed to be used on energized lines while meeting the ASME B30.21 spec. and going
a step further with a stress link overload warning system. These hoists have a capacity of 1500/3000 lbs.
Interlocking pawl system
Double flanged drum - keeps web strap from coming in contact with ratchet teeth
Reversible handle with 2 spare stress links
Oiled for life bearings
1 ¼” OD fiberglass handle for extra stiffness
Synthetic web strap
USA forged steel hooks

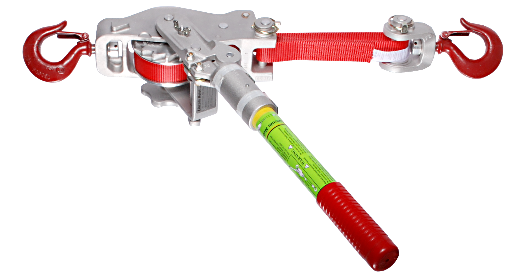

Model 30W08S shown
